| ブランド名: | Xingweihan |
| モデル番号: | d（n）b -100、d（n）b--160、d（n）b - 200、d（n）b - 250 |
| MOQ: | 1 |
| 価格: | USD10000-USD12000 |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給能力: | 50セット/月 |

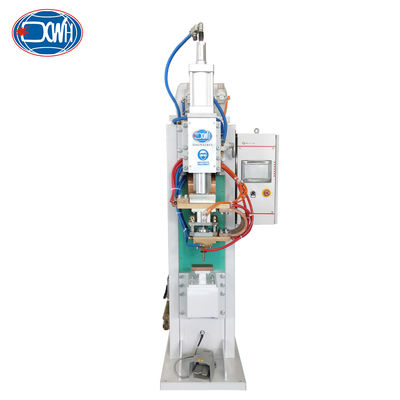

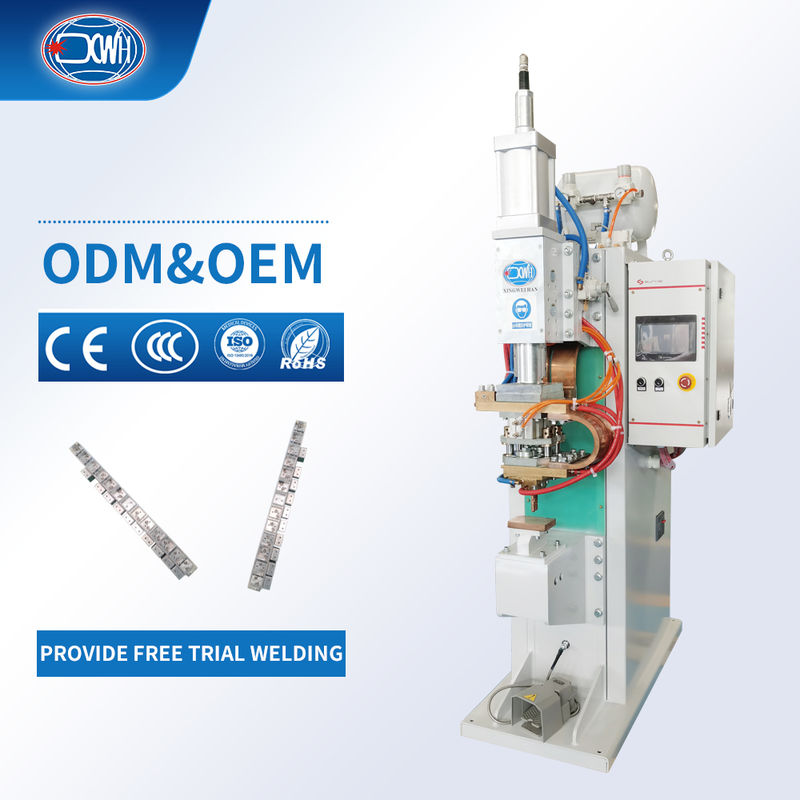

This high-performance production engine enhances the welding capacity of galvanized pipes. Its core advantage lies in the use of dual guns and synchronous welding. Using two customized welding heads that have undergone precise calculations, it can complete high-quality spot welding of two key positions simultaneously in a single operation cycle, doubling efficiency compared to traditional single-head equipment.
The sturdy gantry frame and customized electrode fixture ensure high repeatability and consistency of welding points even under long-term high load operation. Optimized welding parameters for galvanized materials effectively overcome difficulties caused by low zinc layer resistivity, producing strong and aesthetically pleasing weld nuggets. Operators only need to complete simple loading/unloading, while the machine delivers stable, reliable output with precise rhythm - an indispensable capacity multiplier for large-scale production lines.
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
|---|---|---|---|---|
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
