| ブランド名: | XWH |
| モデル番号: | FN-80-H、FN-100-H、FN-160-H、FN-100-E、FN-160-E |
| MOQ: | 1セット |
| 価格: | $18000.00 - $20000.00 |
| 支払条件: | L/C,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム |
| 供給能力: | 50セット/月 |
The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.
|
Model/Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1. Rack: The rack is a vertical structure made of high-quality steel plates and sections that have been welded, heat-treated (stress relieved), and precision machined to ensure the required rigidity and accuracy during workpiece welding.

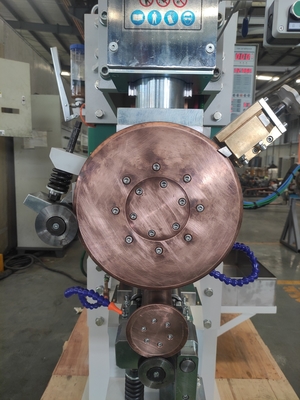

2. Rolling welding head component: The rolling welding head box is made of chrome zirconium copper casting and processing as a whole. The rotating shaft conducts electricity through contact with the silver tile, resulting in higher conductivity efficiency. Internal water cooling is used near the conductive contact area to timely remove heat and ensure conductivity and service life.
3. Pneumatic system: The solenoid valve, pressure regulating valve, air processor, etc. use branded products, and the cylinder adopts oil-free self-lubricating cylinder barrel. The equipment is equipped with a gas storage tank to stabilize the air source pressure. There is a pressure sensor at the inlet, which is monitored by PLC to prevent splashing, welding penetration, or cylinder failure during low air pressure.

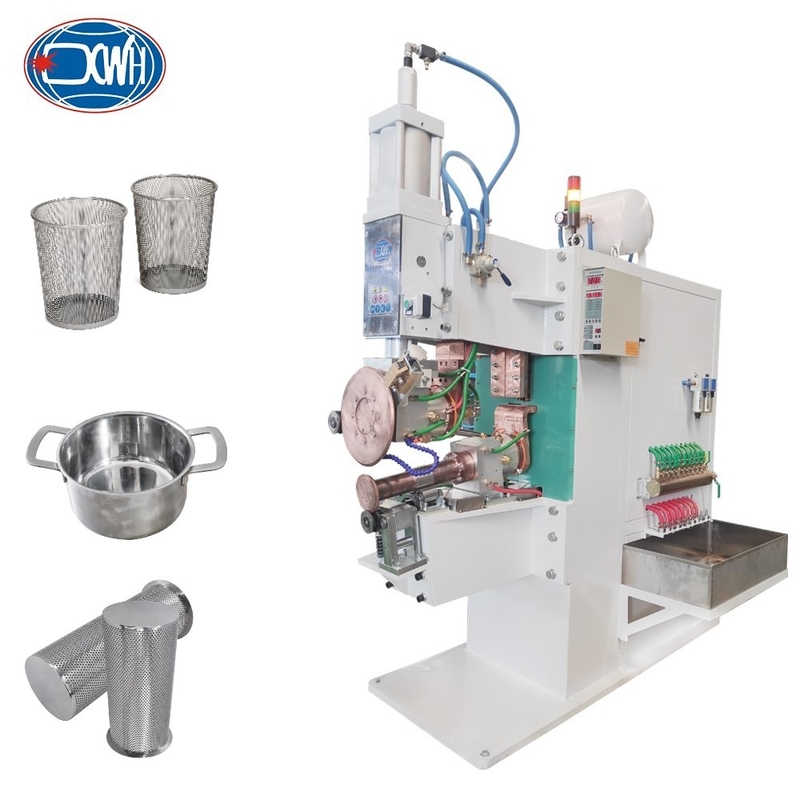

General Structures:
Detail Images:
Multi Types:
Application:
Please note: the welding machine can be custom-made according to your requirements.
